SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

High-concerned chemical: None

Is Smart Device: Yes

Origin: Mainland China

Note

1: The tin absorber should not suck too much at once, otherwise it will clog and cause the machine to not work

2: After working for a period of time, it is necessary to frequently insert steel wire from the pen tip to clean the tin slag and ensure that the inside of the tin suction pen is not blocked, so that the tin suction pen can continue to work normally

Product Features:

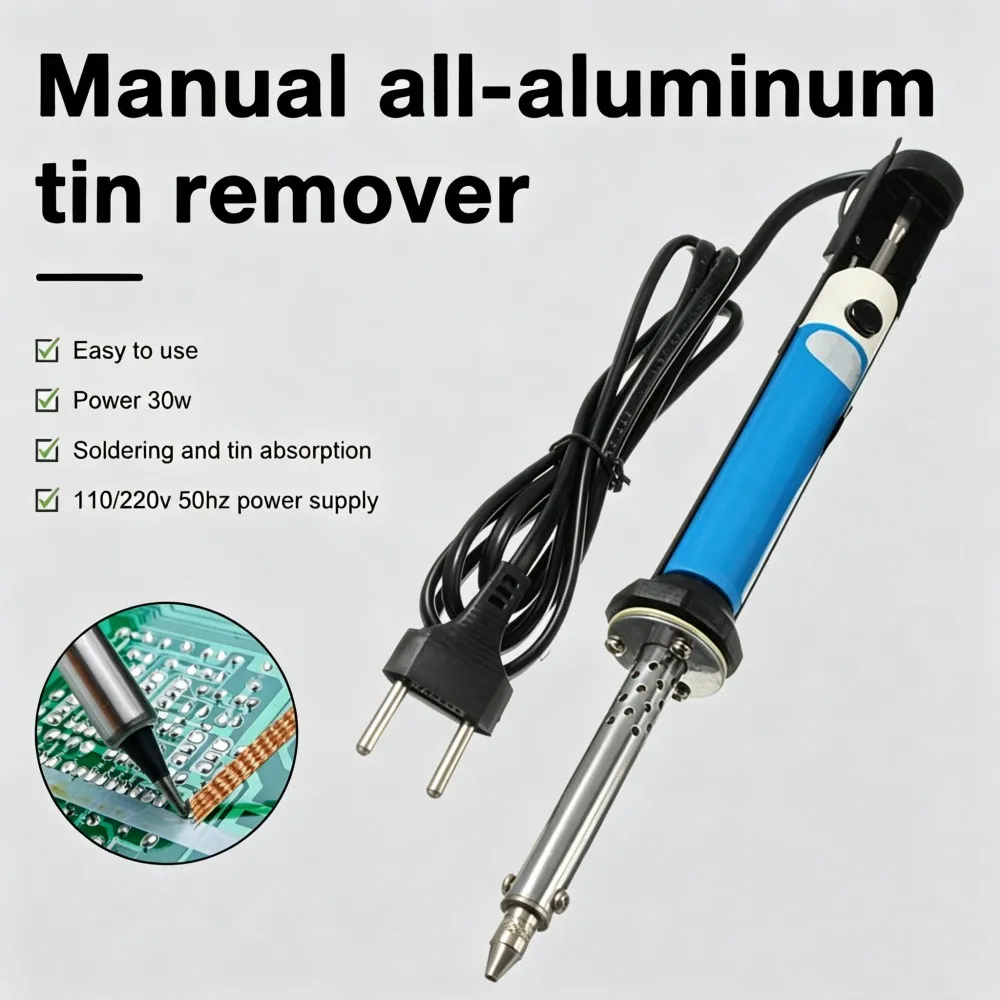

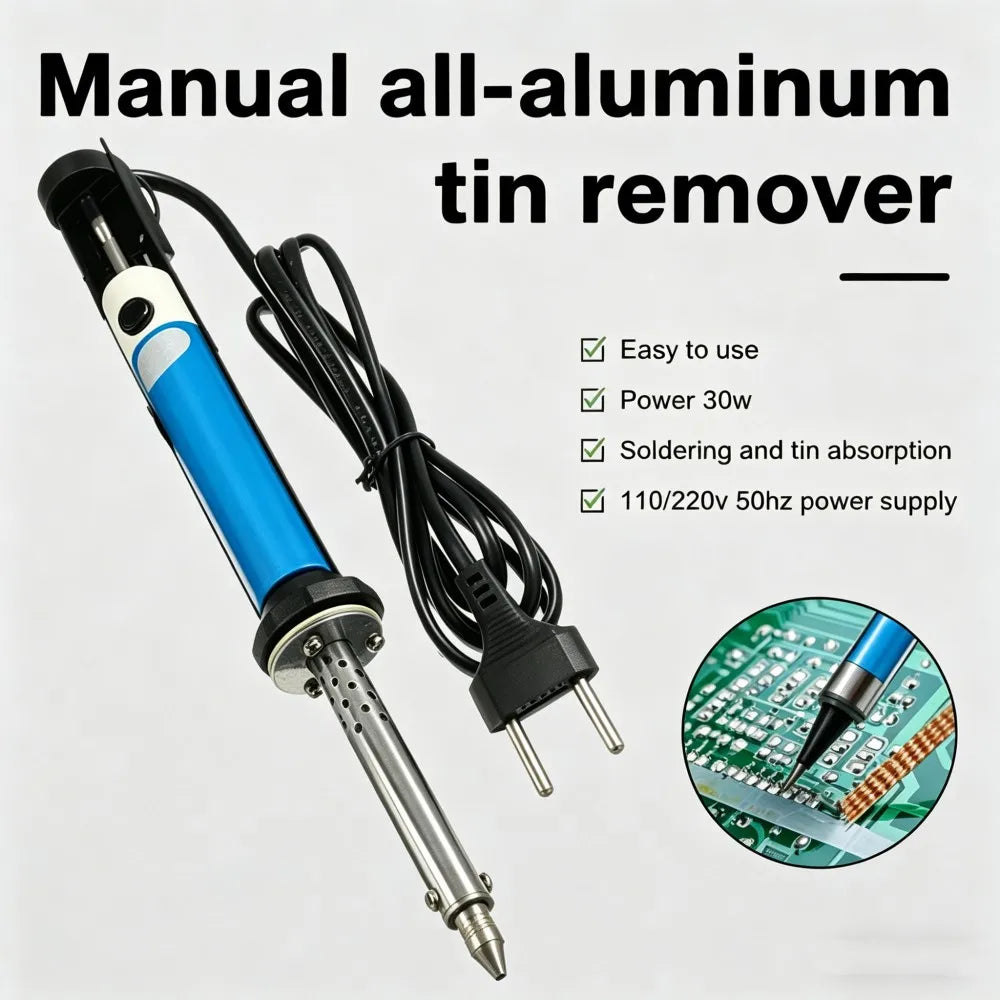

1. Using a 110/220V 50Hz power supply with a power of 30W;

2. Turn on the power and preheat for 3-5 minutes;

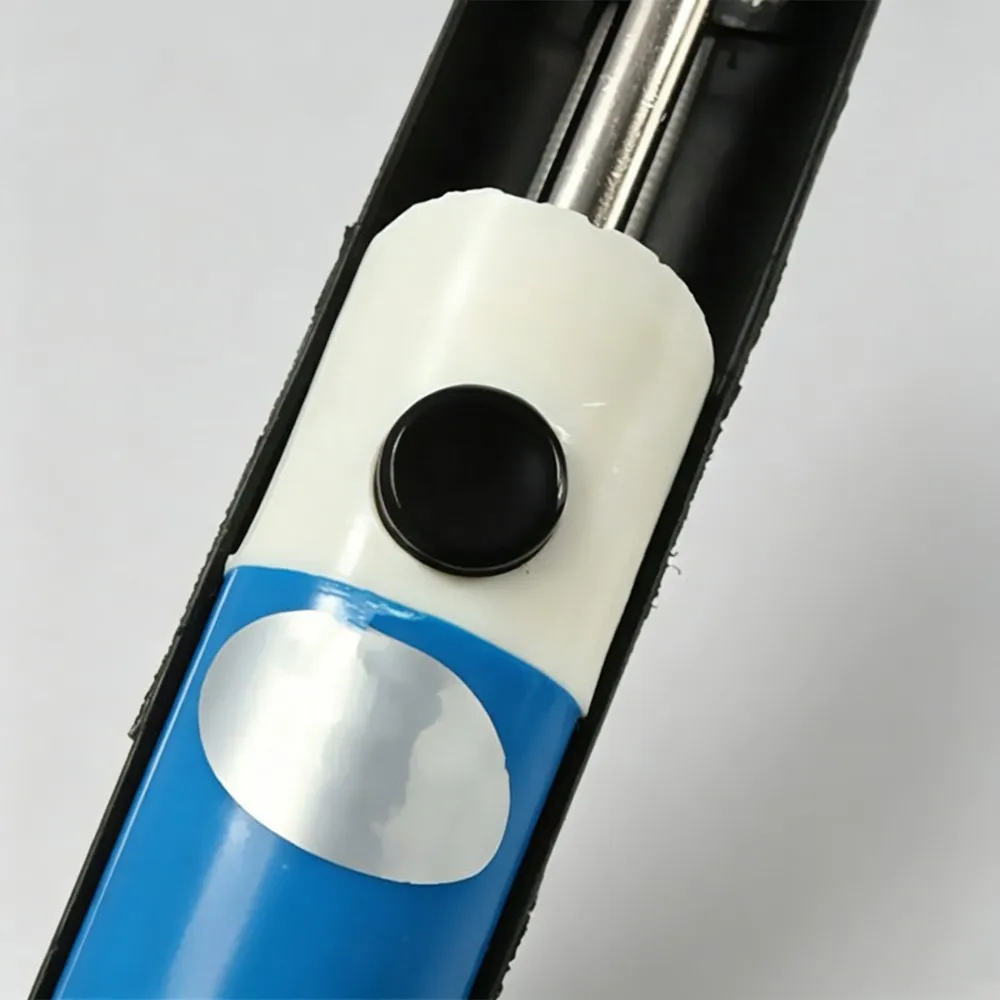

3. Press the piston handle and align the solder nozzle with the welded part; After the can melts, press the control button and the weld seam is sucked into the cylinder;

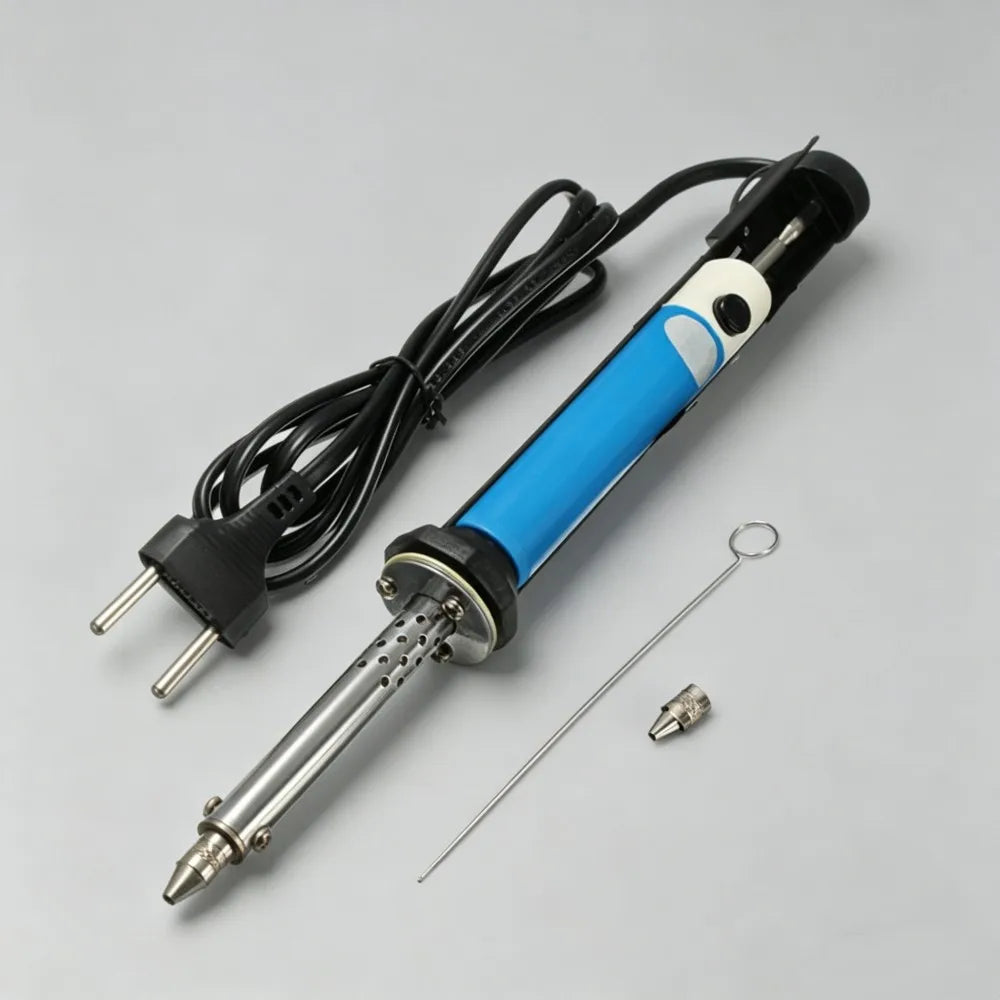

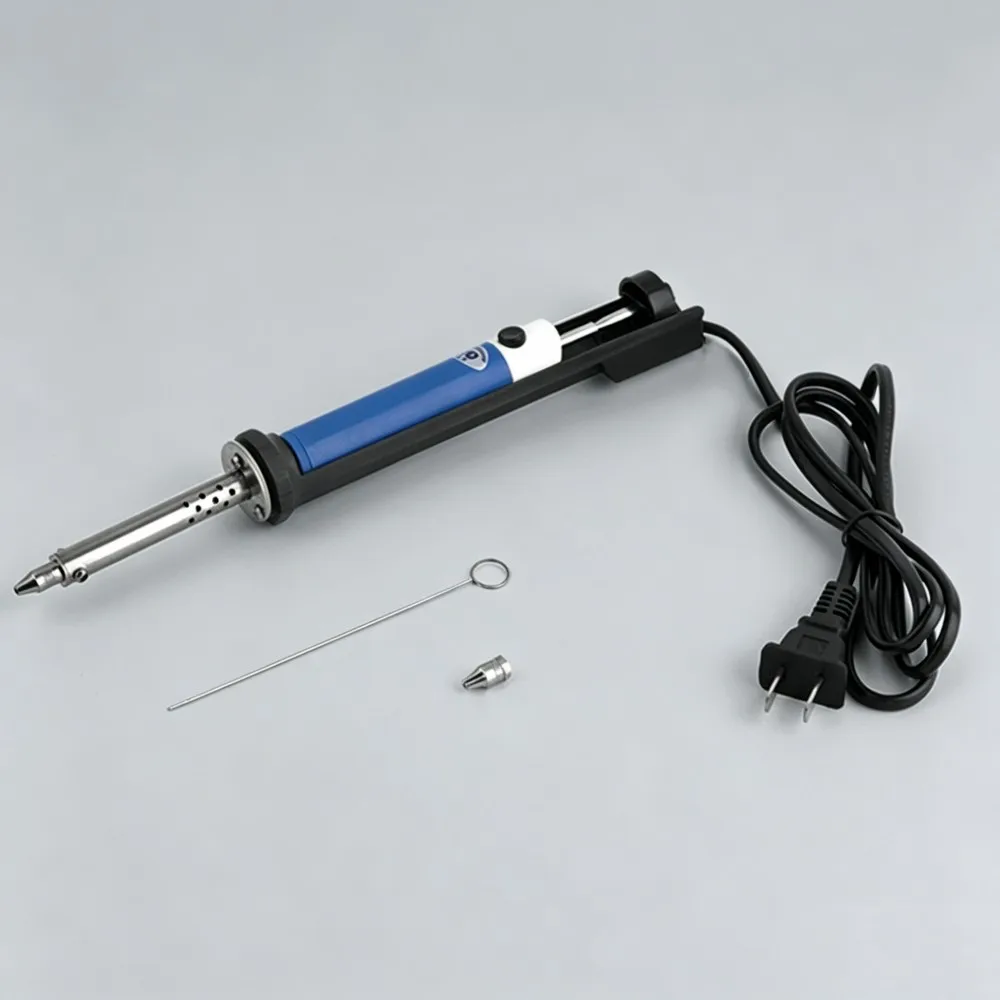

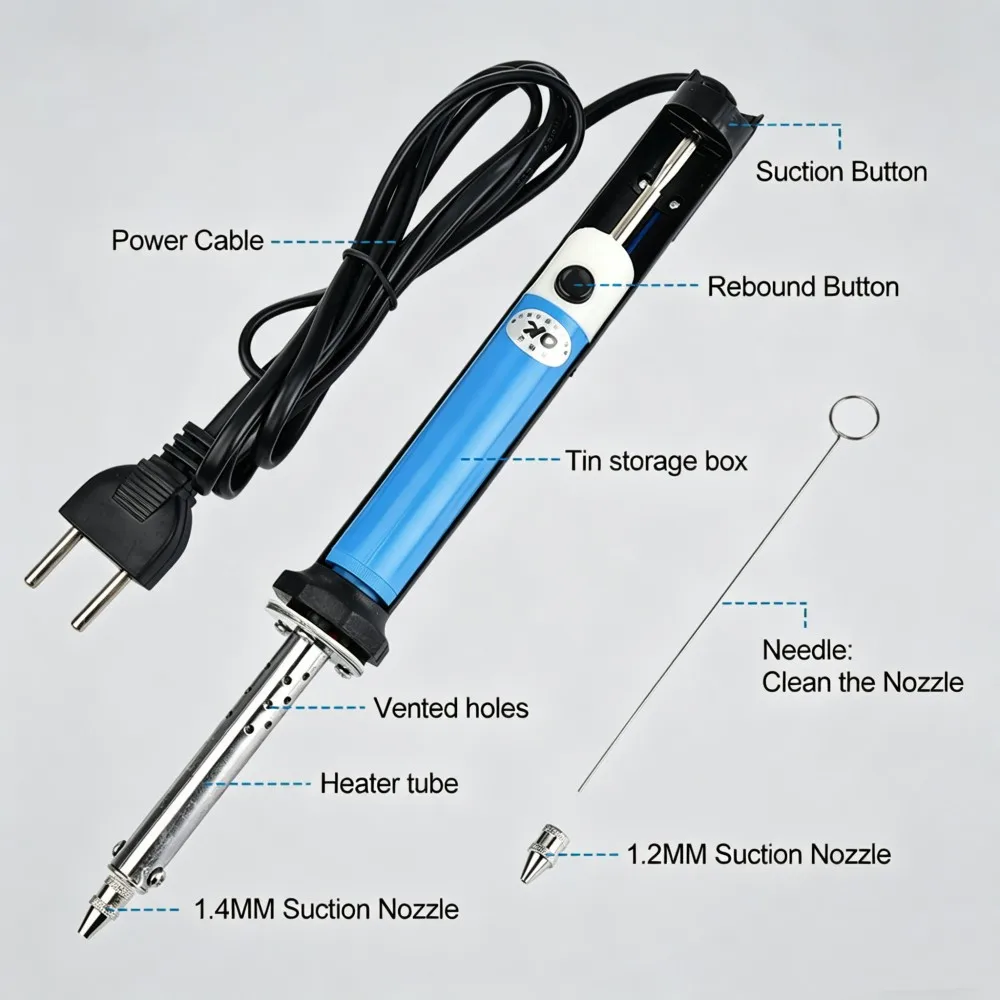

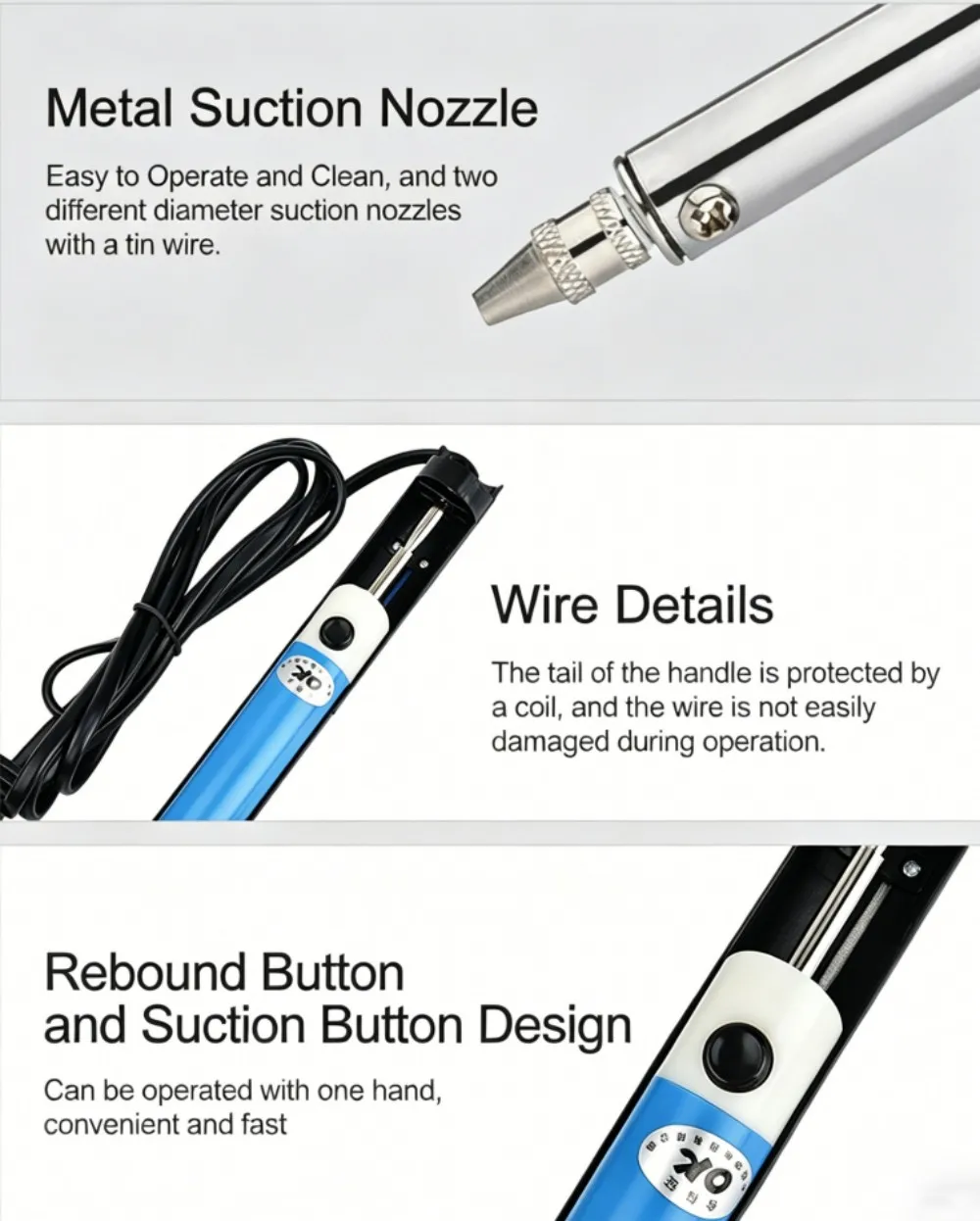

4. The can suction device is equipped with two suction nozzles of different diameters, depending on the thickness of the lead components;

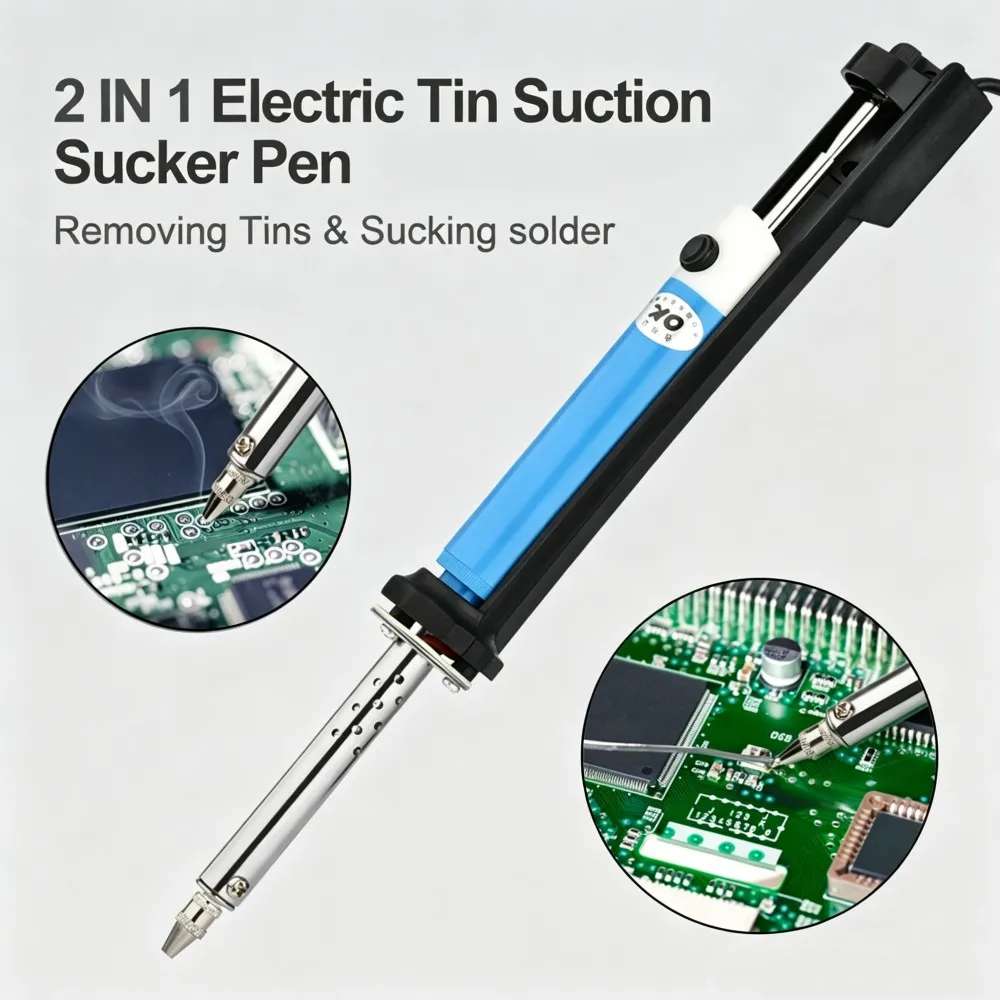

5. When welding, the operation is the same as that of a soldering iron; Welding and tin suction dual-use

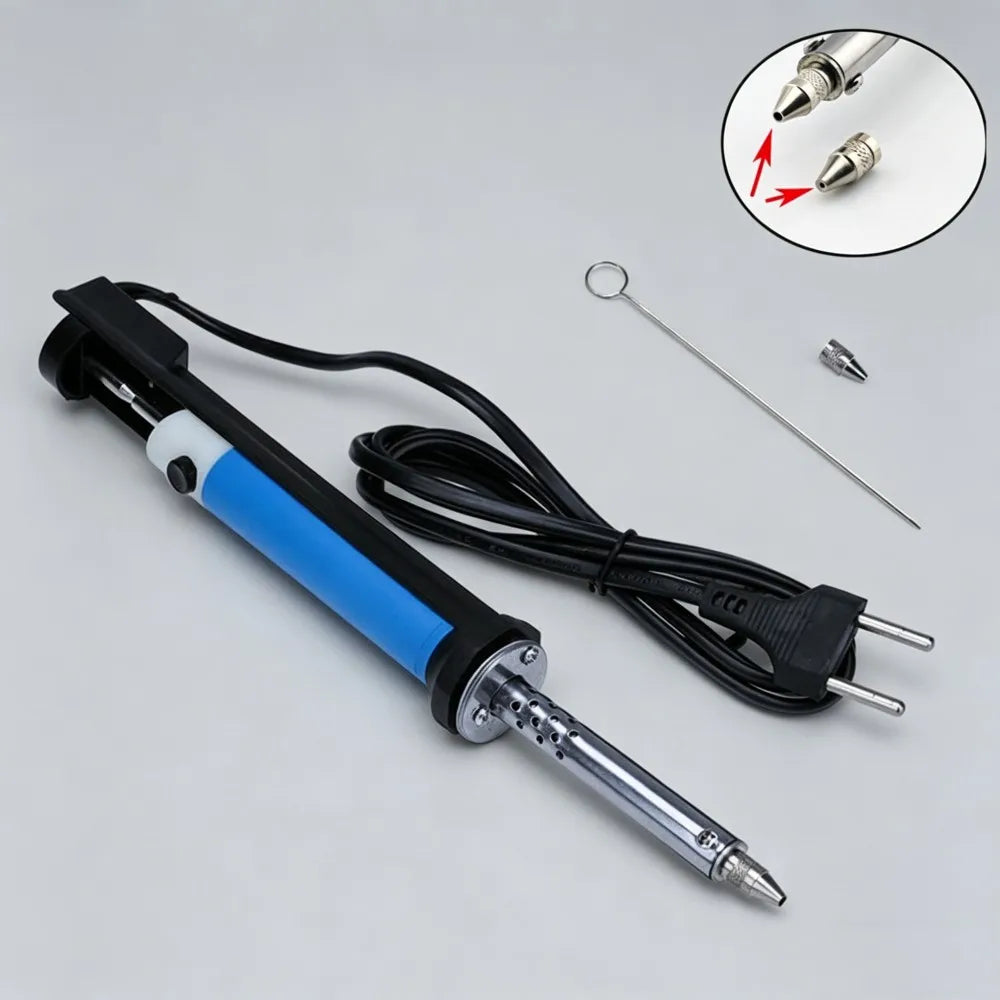

When disassembling the cylinder, press down on the top of the cylinder in the direction of the arrow, and pull the cylinder and handle at the same time to separate the cylinder; When disassembling the nozzle, turn it counterclockwise and remove it;

Notes:

1. Ensure consistent voltage, high or low voltage is not conducive to use;

2. Before use, tighten the cylinder and nozzle to prevent leakage. Otherwise, it will affect the suction force.

3. Regularly clean the welding impurities in the suction nozzle and cylinder, and add a small amount of oil to the piston;

4. After each use, push the piston 3-4 times to move the remaining straw to the suction nozzle, and then use the straw smoothly;

5. It is strictly prohibited to install or remove some electrical components of the suction tank device when it is opened.

It is normal for a small amount of smoke to be generated due to heating when using a new tin suction pump for the first time. It will naturally disappear within ten minutes.

7. When using, a naturally cooled soldering iron base should be equipped and the suction pen should be placed on the soldering iron base.

Before replacing welding parts or nozzles, please turn off the power and wait for the nozzle temperature to cool down before operating.

9. This product has a grounding wire and should be used with sockets with contacts. Please pay attention to safety.

Parameter

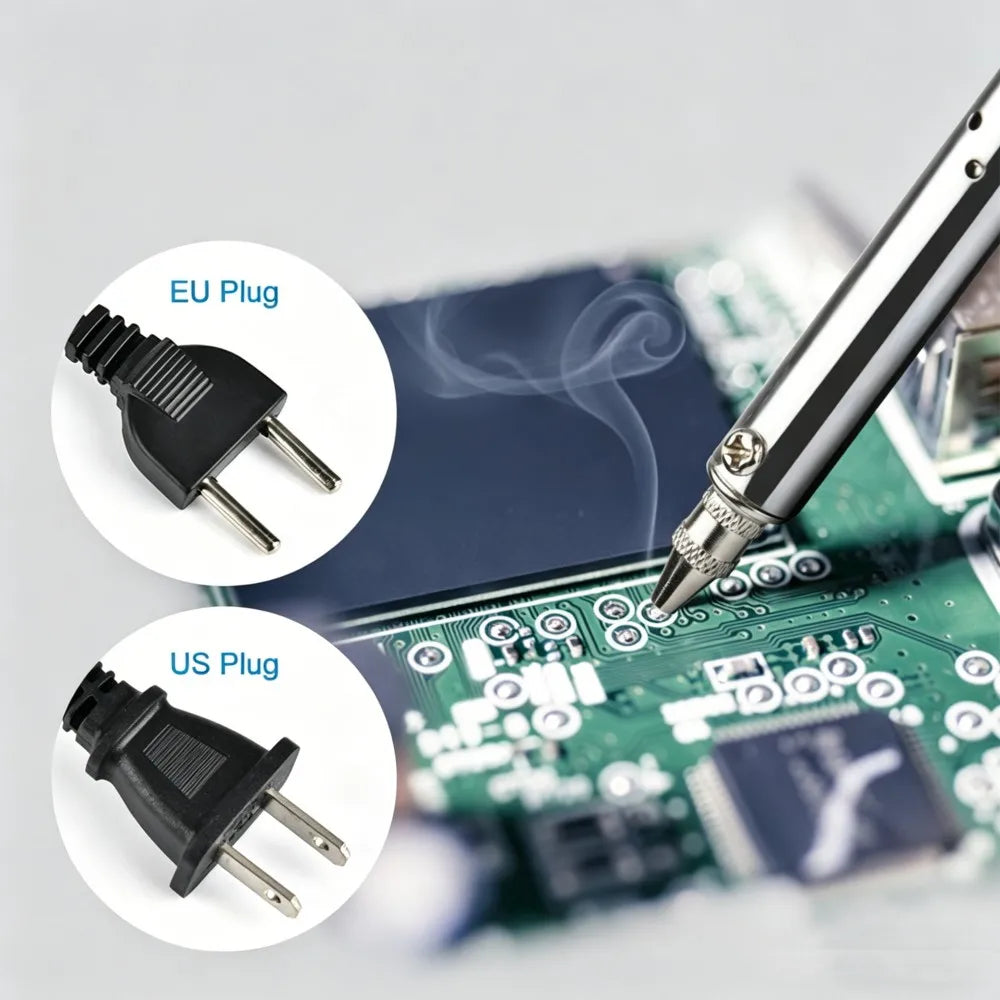

Working voltage: EU plug 220V, USA plug 110V, 50Hz

Heater power: 30W

Electromagnetic power: 350w (instantaneous)

Insulation level: Class E

Working mode: continuous

Materials: Plastic, Metal

Color: blue

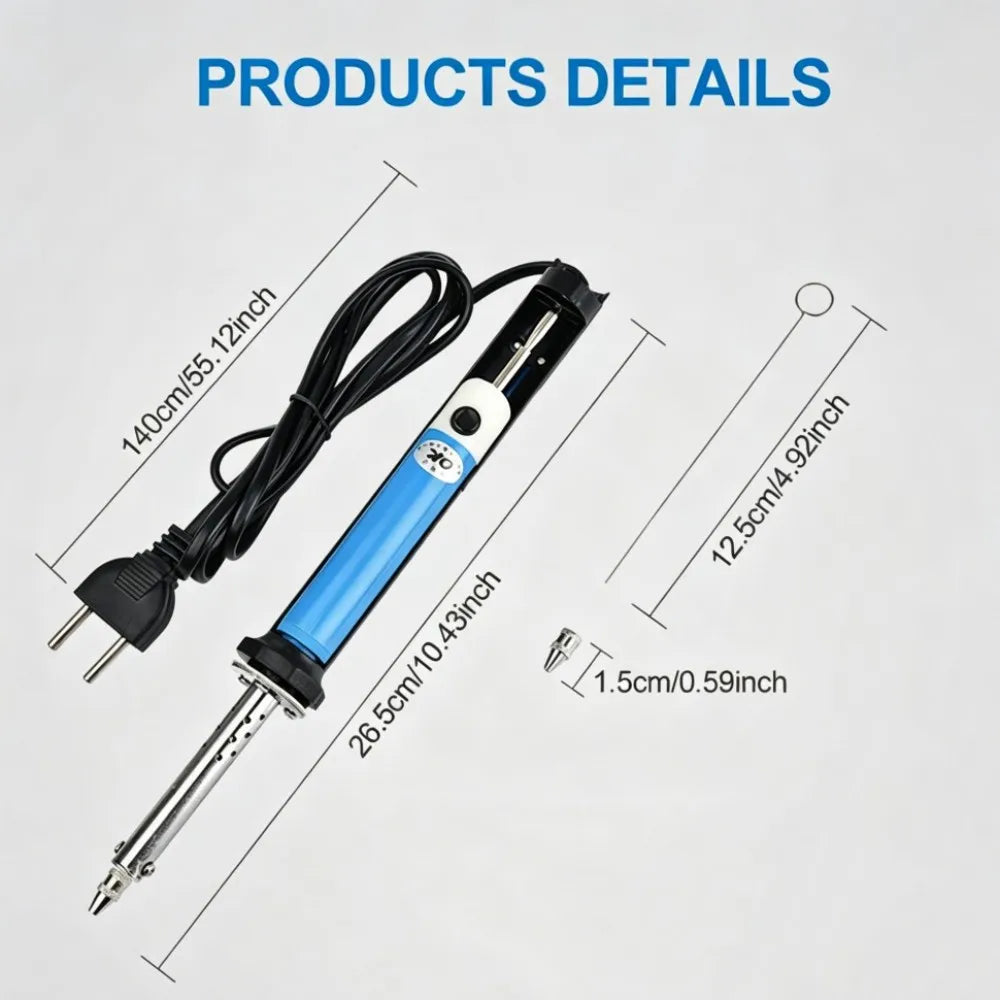

Size: 245mm * 30mm (length and width)
