300Mbps WiFi Repeater Wireless Wifi Extender Amplifier 802.11N Signal Booster Long Range Router
300Mbps WiFi Repeater Wireless Wifi Extender Amplifier 802.11N Signal Booster Long Range Router
SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: 300 Mbps
5G Wi-Fi Transmission Rate: None
Antenna Type: Internal
Application: Broadband
Brand Name: ICANING
Frequency: 2.4 GHz
Frequency Band Class: Single-Band
Function: Firewall,VPN
High-concerned chemical: None
LAN Ports: 1
Max. LAN Data Rate: 1300Mbps
Number of USB Interfaces: 1 x USB 3.0
Origin: Mainland China
Package: Yes
Product Name: wifi repeater/wifi router/wifi signal repeater/Wi-Fi signal amplifier
Recommended Uses: Home
Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac
Support Mesh: Not Supported
Type: WireLess
WAN Ports: 1 x10/100/1000Mbps
Wi-Fi Supported Frequency: 2.4G
Wi-Fi Transmission Standard: 802.11g
Wired Transfer Rate: 10/100/1000Mbps
Wireless Communication Standard: 802.11.n
Wireless transmission rate: 300m
With Modem Function: Yes
Specifications:
Standard IEEE802.11b, IEEE 802.11g, IEEE 802.11n
Modulation 802.11b: DSSS / BPSK / QPSK / CCK
802.11g: OFDM / DSSS / BPSK / QPSK / CCK
802.11n: OFDM / DSSS / BPSK / QPSK / CCK
Speed 802.11b: 11Mbps
802.11g: 54Mbps
802.11n: 300Mbps
Channel 11: (Ch.1-11) - USA
13: (Ch.1-13) - Europe
14: (Ch.1-14) - Japan
Frequency band 2.412~2.462GHz -USA
2.412~2.472GHz -Europe ETSI
2.412~2.484GHz -Japan
Power 802.11b: 17dBm ± 1.5 dBm
802.11g: 14dBm ± 1.5 dBm
802.11n: 14dBm ± 1.5 dBm
Sensitivity 802.11b: -83dBm /802.11g: -70dBm / 802.11n: -68dBm
Antenna 2 x 3dBi Integrated Antennas
Distance Outdoors 300m, Indoor 100m (According to the actual environment change)
Security 64/128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x, WPA-PSK, WPA2-PSK, MAC, WDS

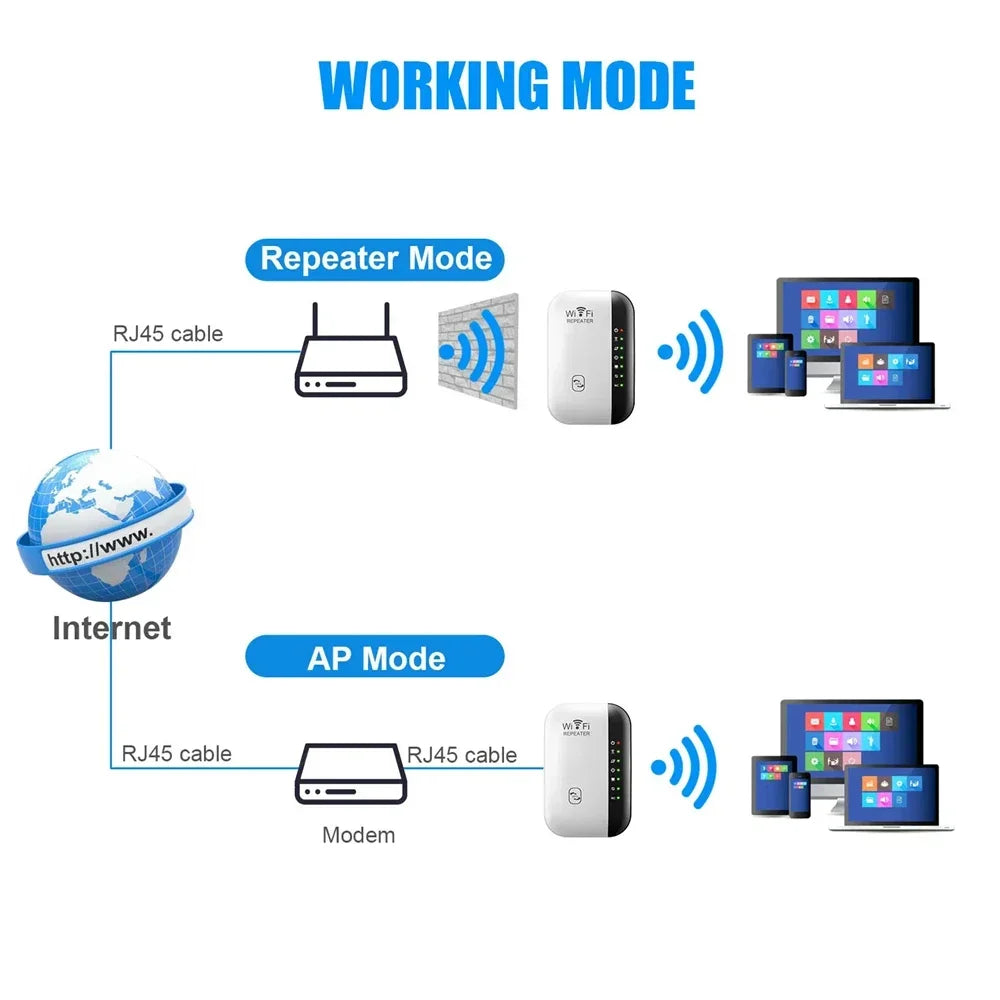

Mode AP Mode / Repeater Mode
Wireless Security Wireless MAC address Screening
Wireless security function switch
64/128/152-bit WEP
WPA-PSK/WPA2-PSK, WPA/WPA2
Function IP bandwidth control (Router mode support)
DNS Relay (Router mode support)
VPN Pass-through (Router mode support)
Static Router (Router mode support)
DHCP Server (Router mode support)
DHCP settings Server list (Router mode support)
Static IP address allocation (Router mode support)
Specifications:
Ports 1 x RJ45 Jack
Button Reset WPS
LED 1 * LAN, 1 * WLAN, 1 * Power, 1 * WPS
Chipset RTL8196E
Flash 16Mbps
SDRAM 128Mbps
Power supply Internal DC5V / 1A
Power consumption 2.3W
Rated voltage/ frequency /current 100-240 VAC 50/60Hz, 0.1A Max.
